Typical applications

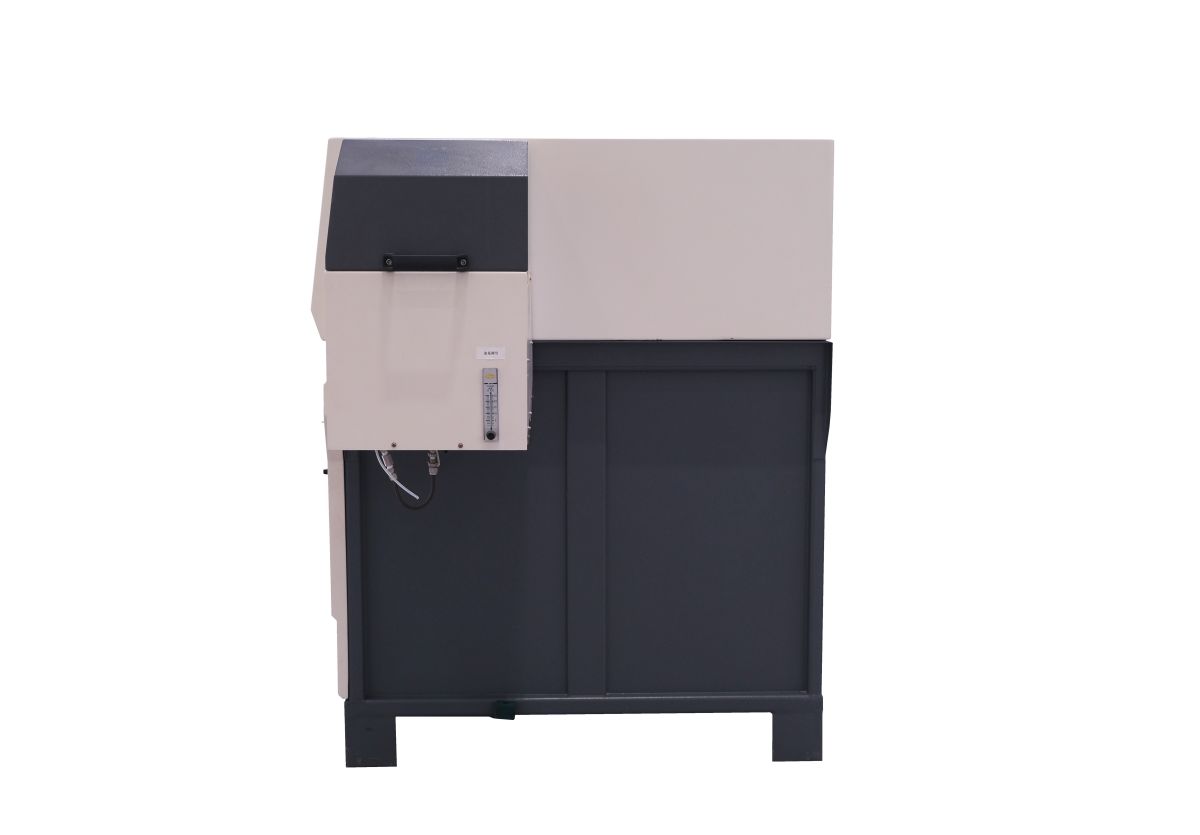

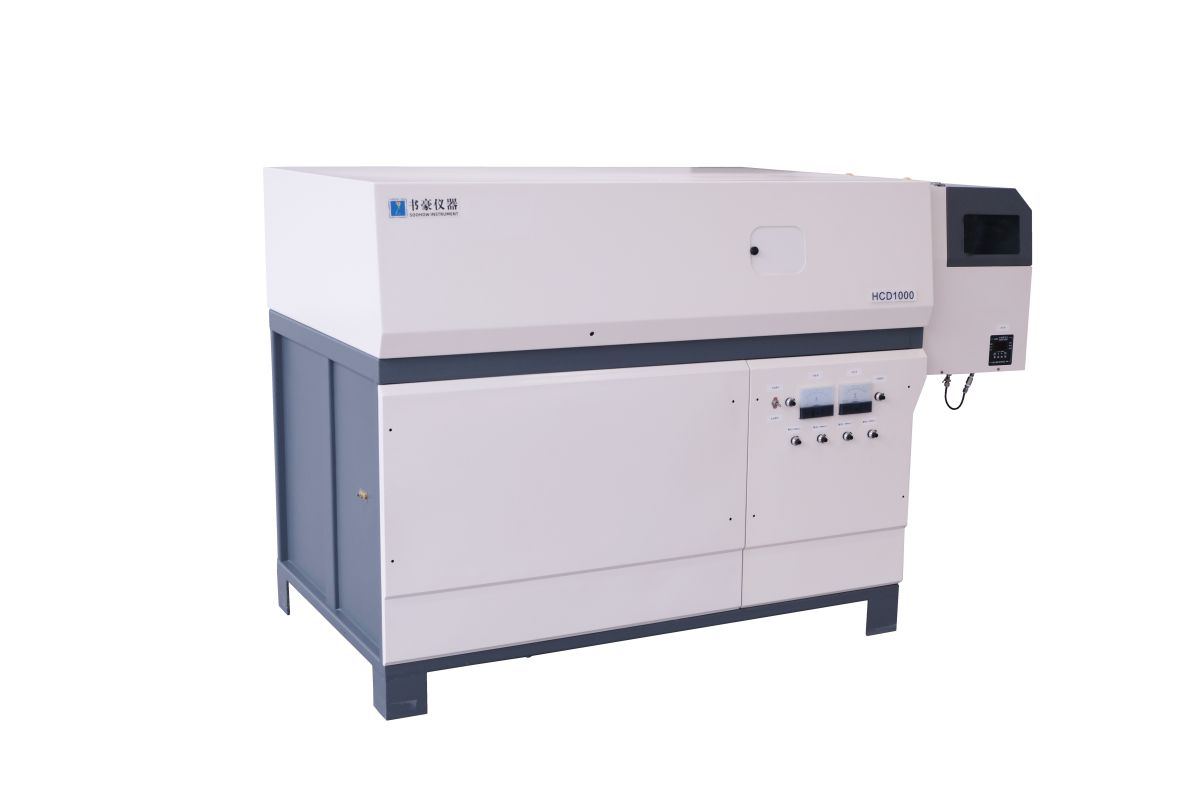

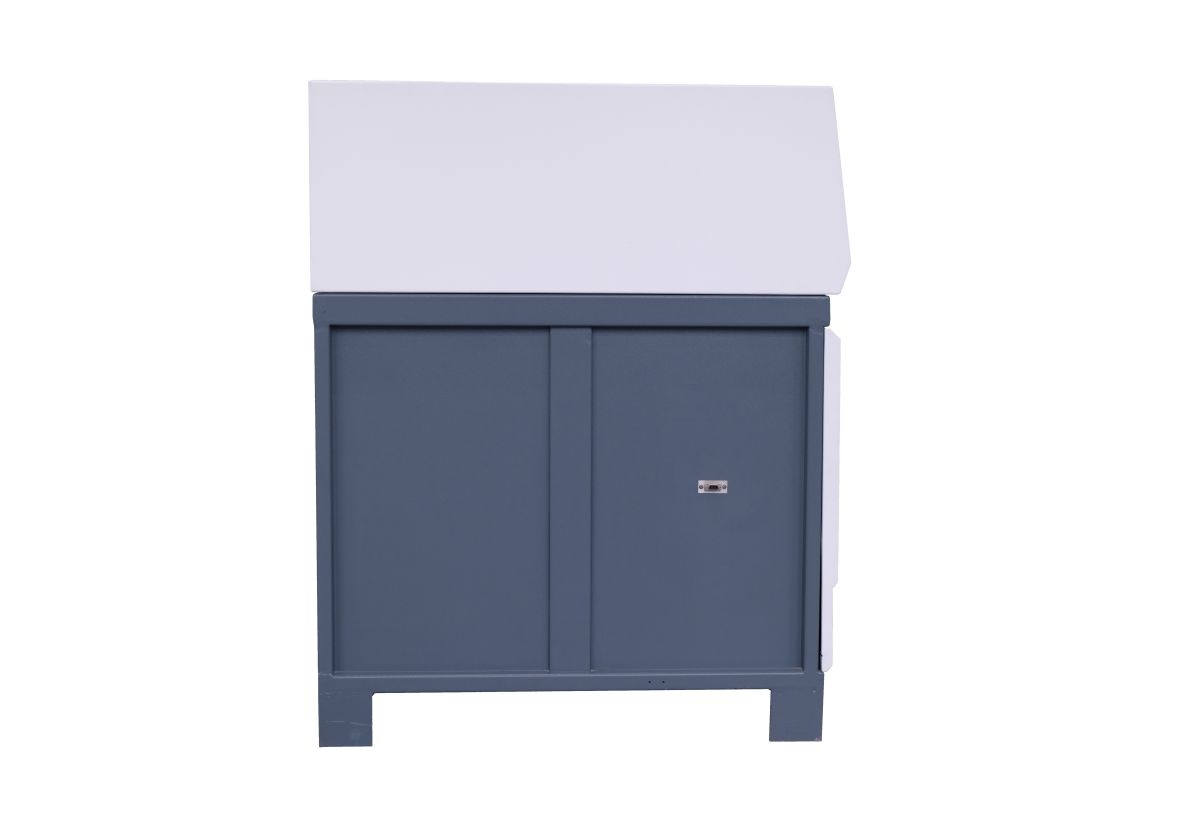

Hollow cathode spectrometer with a maximum accuracy of 0.000001%. It is used to detect the content of trace impurity elements in ultrapure refractory metals. The standard stipulates that the total content of 45 impurity elements (Pb, As, Sn, Bi...) in aviation materials cannot exceed 0.005%.
Application field:
Fluorine and chlorine in uranium oxide
Alkali metal analysis
Determination of oxygen in steel
Ultra pure reagents and semiconductors

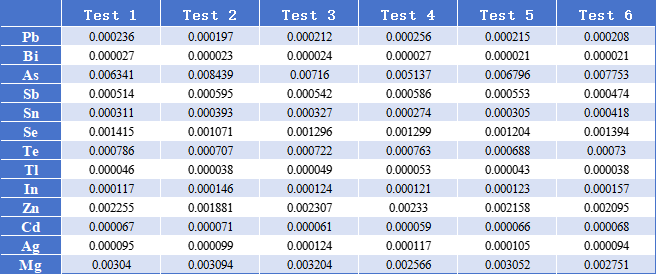

Partial repetitive experimental data:
Technical parameters:
Spectral range: 200nm -500nm;
Optical focal length: 998.8mm;
Grating line: 2160gr/mm, dispersion rate: 0.47nm/mm;
Water cooled electrode: circulating cooling water device, automatic temperature control;
Light source: hollow cathode power supply;
Constant temperature system: 38 ± 0.1 ℃;
Weight: approximately 500kg;
Size: 1800mm * 1050mm * 1245mm (length * width * height);
Environmental conditions: temperature of 15 ℃ -25 ℃, relative humidity not exceeding 75%.
Instrument features:
1. The invention of this device is beneficial for application method engineers to tap into the potential of the device. To facilitate the expansion of application scenarios;
2. Can analyze multiple elements at once;
3. This method is mainly a "dry" analysis technique, which directly excites solid samples (metal chips or powders);
4. The blank introduced by chemical reagents and vessels, as well as the basic elimination of environmental pollution; Do not use flammable, explosive, or harmful gases to the human body, nor use chemical reagents, which is beneficial for human health, safety, and environmental protection;
5. Easy to operate, the analysis process only requires weighing, excitation, and computer analysis to directly obtain the concentration of unknown samples;
6. When exciting the sample, each element has a different life cycle, so the function of element evaporation curve is needed to determine the analysis time period for different element integrals.
