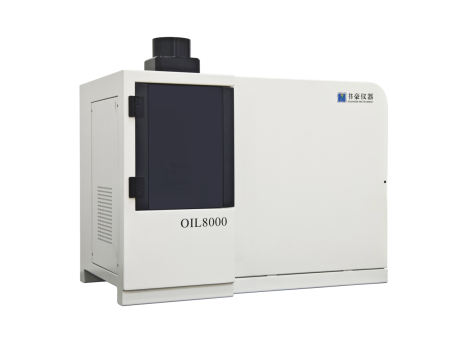

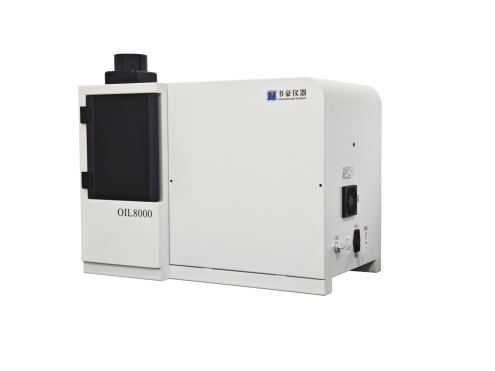

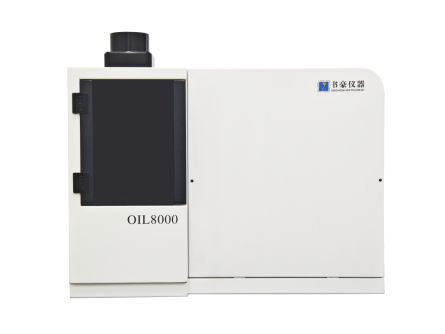

SOOHOW OIL8000 is a compact oil spectroscopic instrument launched by Soohow, which uses rotating disc electrode atomic emission spectroscopy technology and a new digital light source control system, making it smaller and more lightweight. Professional testing of metal abrasives and pollutants in lubricating oil or hydraulic oil in use, consistent with the requirements of ASTM D6595 standard. Simultaneously comply with ASTM D6728 standard (detection standard for alkaline pollutants in fuel). Oil element spectral analyzer, without the need for dilution of oil, without the need for auxiliary solvents or gases. Analyze multiple abrasive elements simultaneously within 30 seconds, allowing users to quickly detect the oil status of the equipment. The independently developed Soohow Oil Spectrometer Analysis Software [WinOil] V1.0 is intuitive and easy to operate, and can analyze multiple elements simultaneously.
Application field:
Military field
Aerospace field
Electricity industry
Transportation industry

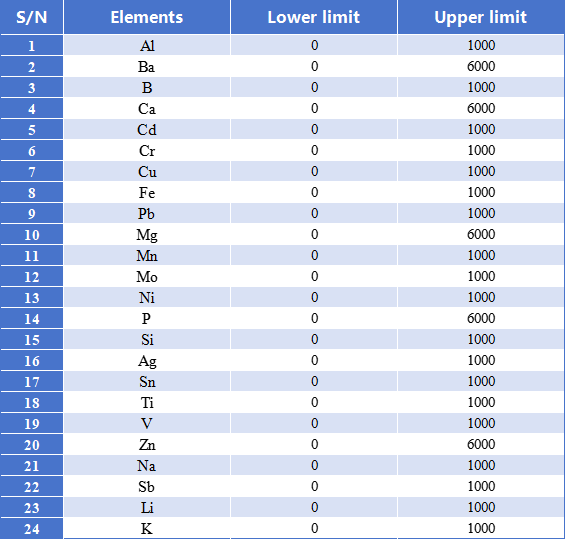

Element detection analysis table:
Technical parameters:
optical system
Multi block high-performance CCD detector system;:Each CCD has 3648 pixels; Up to 43776 pixels resolution (12 x 3648 pixels);
Temperature stabilization system: Using special materials to cope with drift;
High performance holographic diffraction grating with 2700 grating lines/mm;
Focal length: 500 mm;
Spectral wavelength: 200-800 nm determined by the selection of diffraction grating.
Spark power supply
Control, electronic acquisition, and data readout systems;
The electronic system has multi-channel integration and data acquisition functions controlled by microprocessors;
High speed 16 bit analog-to-digital converter;
SP mixed signal Flash microcontroller 100MHz;
High speed readout and high-speed USB interface support for fast data control and processing system.

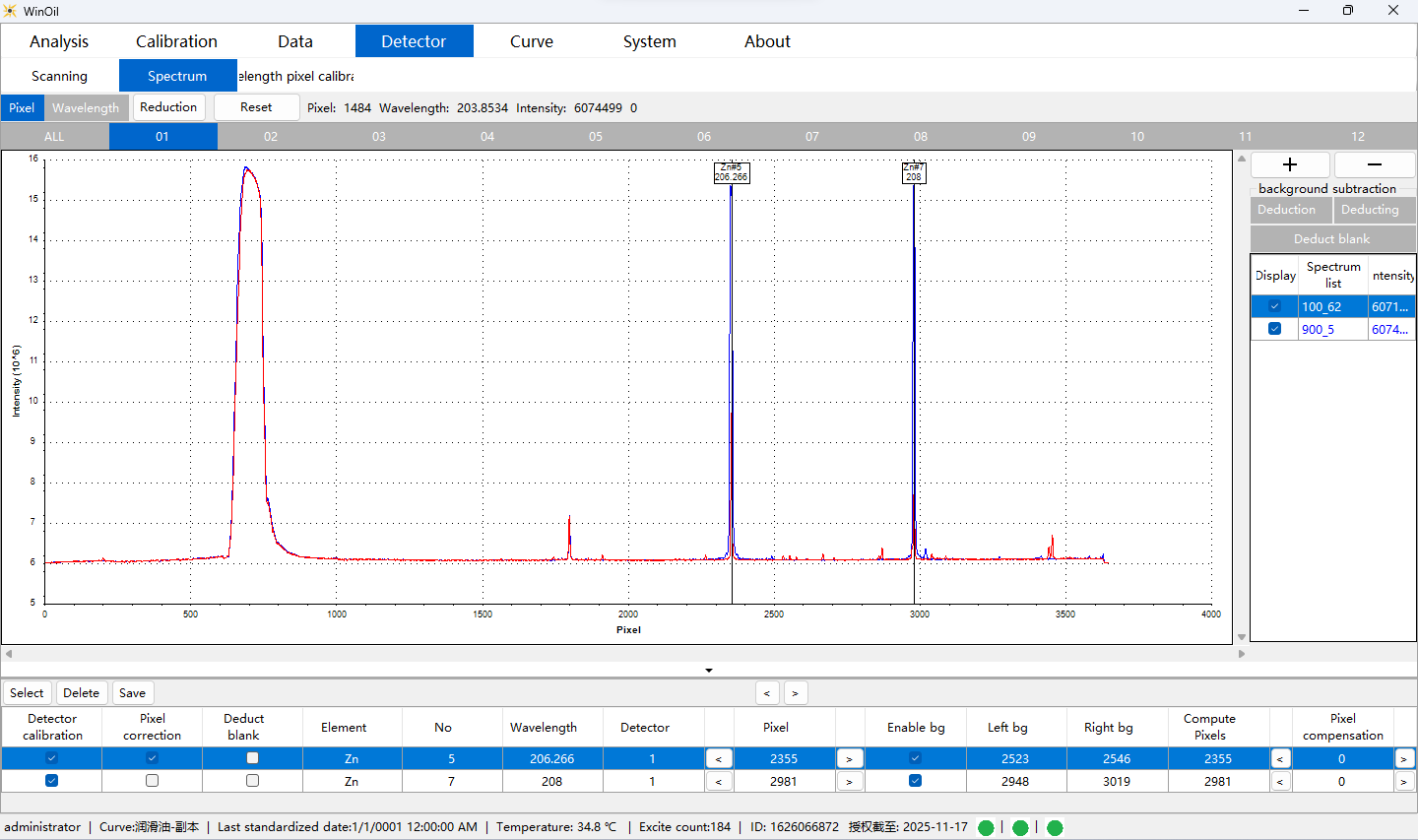

Analysis software
Easy to operate user graphical interface;
Create or modify analysis programs;
Common operation function keys;
Optional output methods (intensity, intensity ratio, uncorrected concentration, corrected concentration, etc.);
Automatic standardization;
Standard deviation and relative standard deviation functions;
Standard Material Library;
Element analysis results that can be marked beyond the working curve range;
Statistical software;
Statistical calculations;
Can print all excitation results or the average result of up to 100 excitations, along with their standard deviation and relative standard deviation.
specifications
Power supply: 220V+/-10%, single-phase, 50/60 Hz, 10 A, 1.5 KVA;
Dimensions: 860mm * 470mm * 620mm (length * width * height);
Weight: 95kg.
Features and advantages:
CCD detector full spectrum analysis technology facilitates the configuration of more matrices and elements, making it convenient for users to supplement configurations on site;
The ultra long focal length design ensures that the instrument has good resolution;
The spectral line processing algorithm can perform functions such as calibration, background subtraction, interference correction, etc;
High detection accuracy, detection limit less than 1ppm;
Fast sample testing speed, with a single testing process of less than 30 seconds;
The instrument is easy to use and maintain, with low professional requirements for personnel;
The sample does not require pre-treatment and no additional chemical reagents are used, making the testing process safe and environmentally friendly;
Working 24/7 with excellent stability and reliability.
