Technical parameter

Optical system:

Multi block high-performance CCD detector system; Each CCD has 3648 pixels; Up to a resolution of 43776 pixels (12 x 3648 pixels);

Temperature stabilization system;

Using special materials to cope with drift;

Focal length: 500 mm;

Spectral wavelength: 200-800 nm.

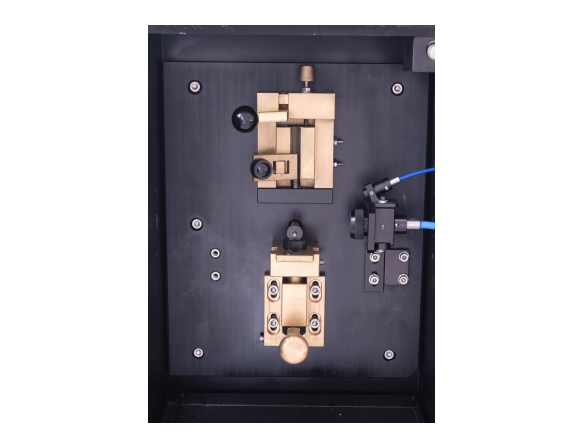

Digital arc power supply:

Adopting a new type of "digital arc light source" control, it has the advantages of small volume, light weight, and stable excitation;

Parallel acquisition of power signals based on FPGA and implementation of control;

The excitation condition software can be modified, making it more suitable for application engineers to find analysis conditions to apply to oil monitoring.

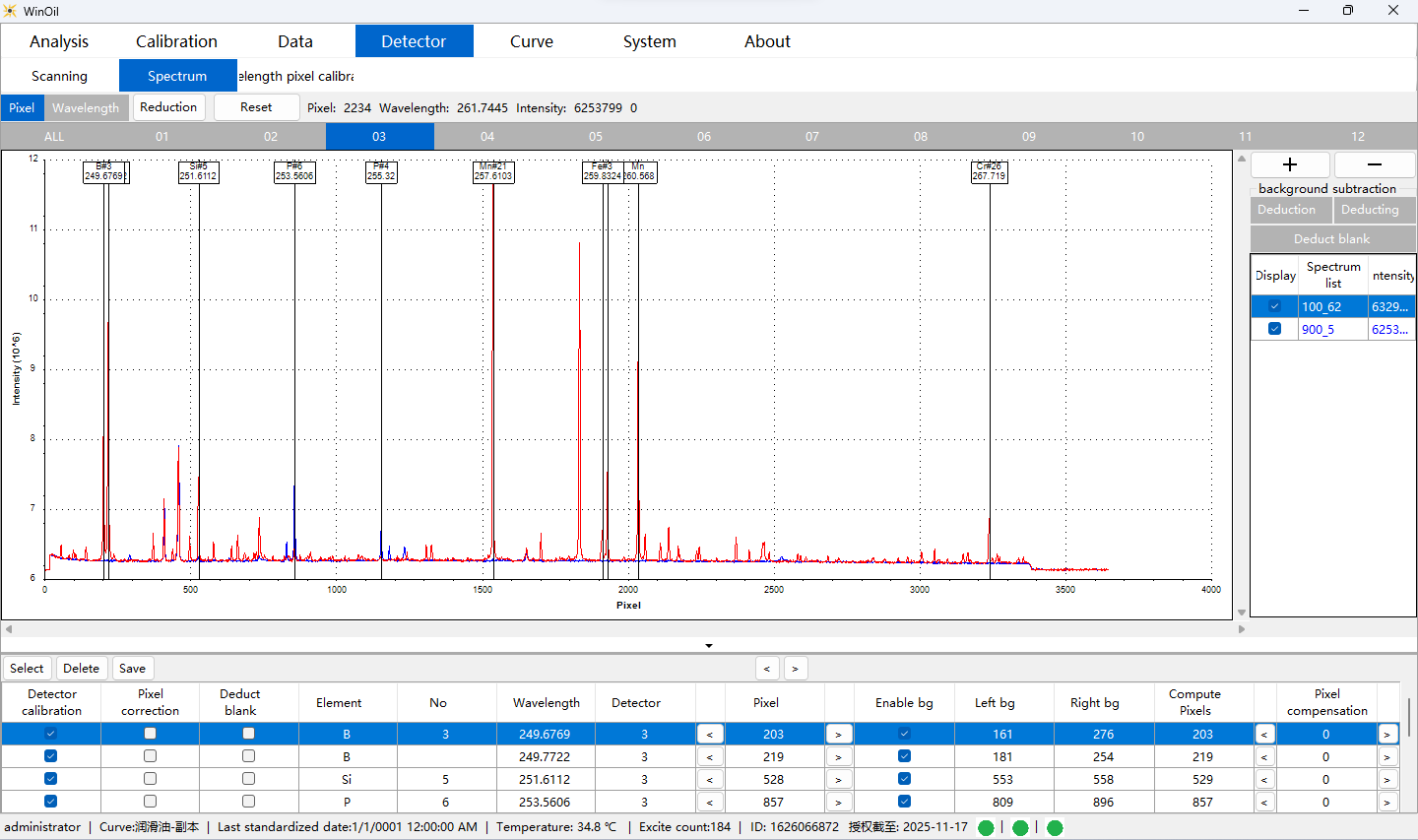

Analysis software:

Easy to operate user graphical interface;

Create or modify analysis programs;

Common operation function keys;

Optional output methods (intensity, intensity ratio, uncorrected concentration, corrected concentration, etc.);

Automatic standardization;

Standard deviation and relative standard deviation functions;

Standard material library;

Element analysis results that exceed the working curve range can be marked;

Statistical software;

Statistical calculations;

Can print all excitation results or the average result of up to 100 excitations, along with their standard deviation and relative standard deviation.

Specifications:

Power supply: 220V+/-10%, single-phase, 50/60 Hz, 10 A, 1.5 KVA;

Dimensions: 770mm * 360mm * 540mm (length * width * height);

Weight: approximately 78 Kg.

Patent digital arc light source, solid-state source excitation, ensuring constant current source frequency output, without the need for periodic cleaning or cleaning of excitation source errors;

Adopting a high-resolution solid-state CCD sensor optical system, with a single pixel of 3648 bits and a pixel size of 8 * 200um, higher pixels can detect more effective spectral intensity;

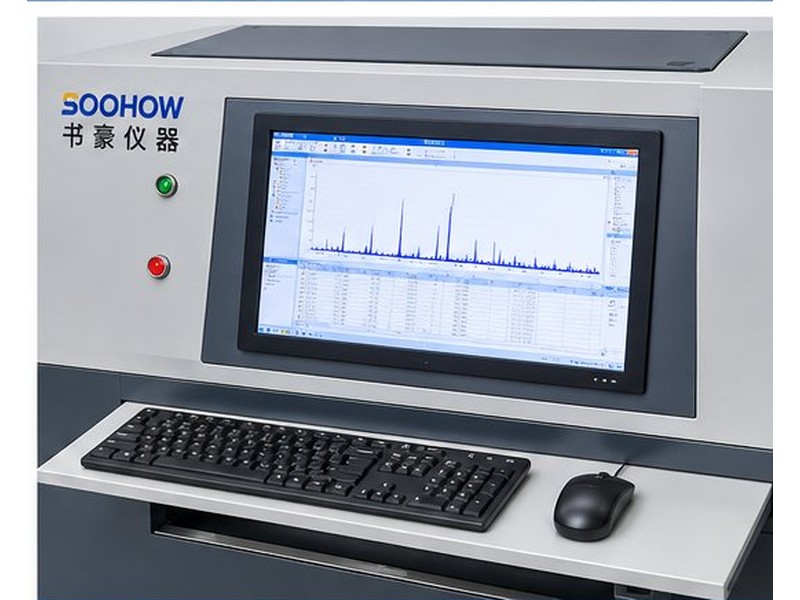

Spectral analysis application software based on Windows system, capable of running on Windows 7, Windows 10 and other systems, integrating instrument control, data management, qualitative and quantitative analysis functions;

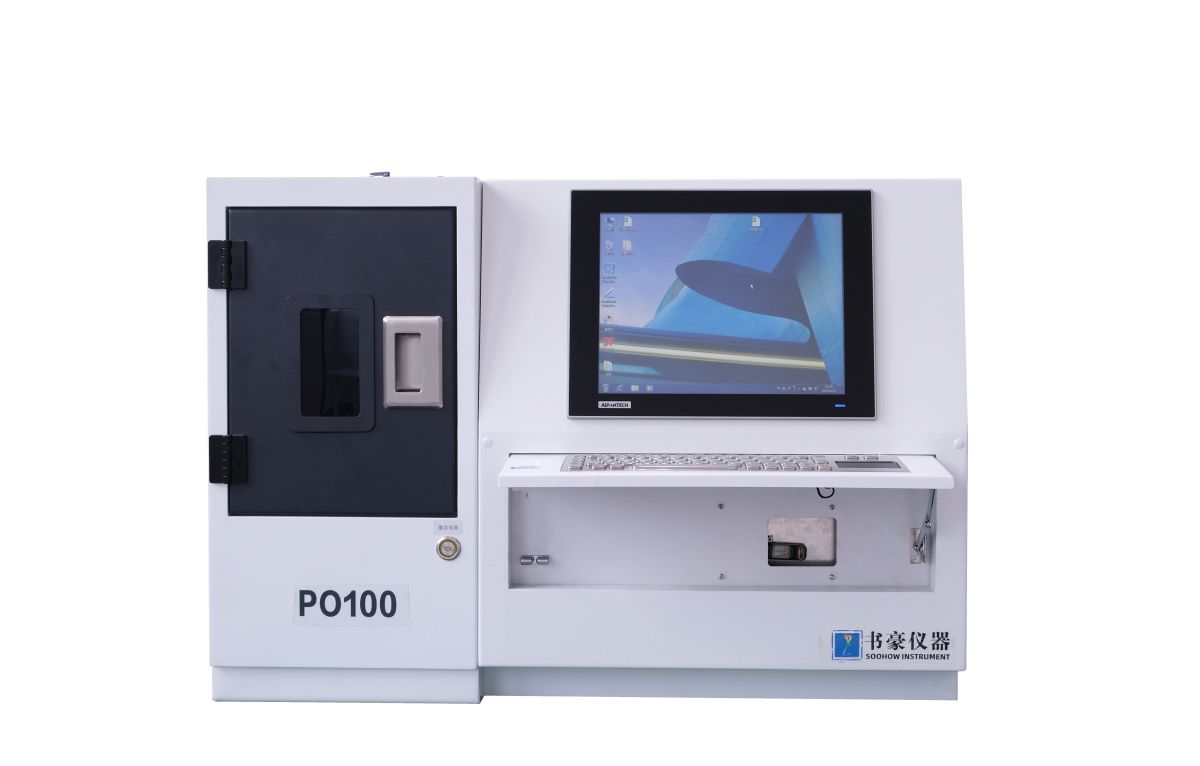

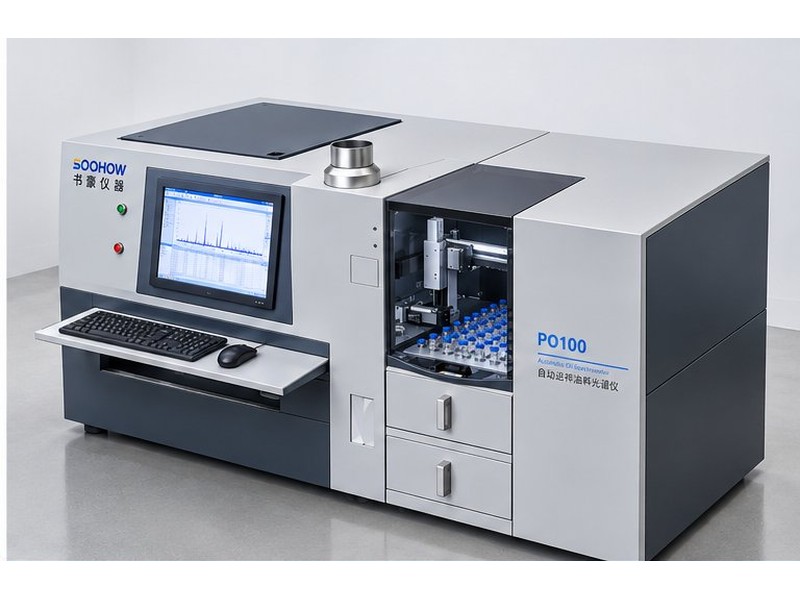

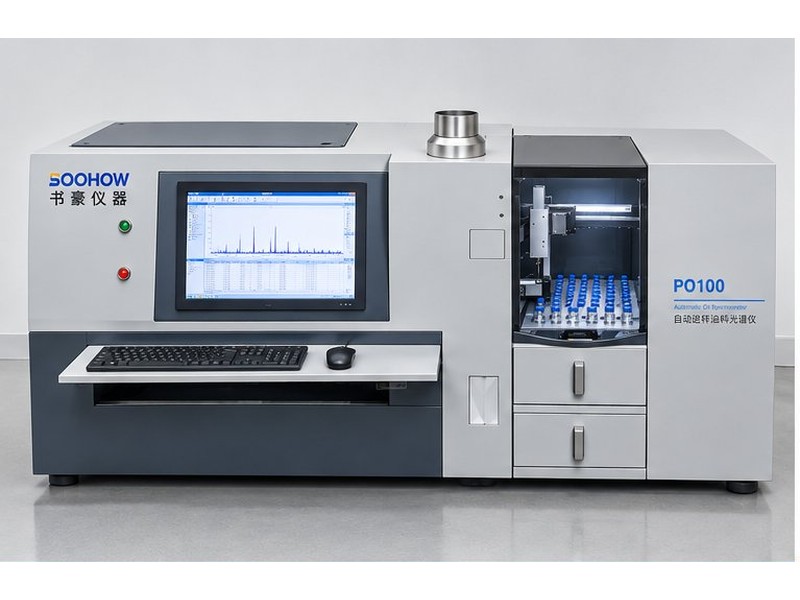

Single desktop instrument, computer system and motor grinder are built-in to the instrument, and the overall volume of the instrument is small, making it easy to transport;

Short heating time, high reliability, suitable for naval environments;

Without the use of argon, oxygen, and other chemical solvents, the oil sample does not require pre-treatment and can be directly placed in a sample cup for testing;

Built in barcode scanner, Bluetooth communication module, and 485 communication interface, no additional configuration required;

Built in electrode grinder, easy to operate;

CCD detector full spectrum analysis technology facilitates the configuration of more matrices and elements, making it convenient for users to supplement configurations on site;

The ultra long focal length design ensures that the instrument has good resolution;

The spectral line processing algorithm can perform functions such as calibration, background subtraction, interference correction, etc;

High detection accuracy, detection limit less than 1ppm;

Fast sample testing speed, with a single testing process of less than 30 seconds;

The instrument is easy to use and maintain, with low professional requirements for personnel;

The sample does not require pre-treatment and no additional chemical reagents are used, making the testing process safe and environmentally friendly;

Working 24/7 with excellent stability and reliability.
