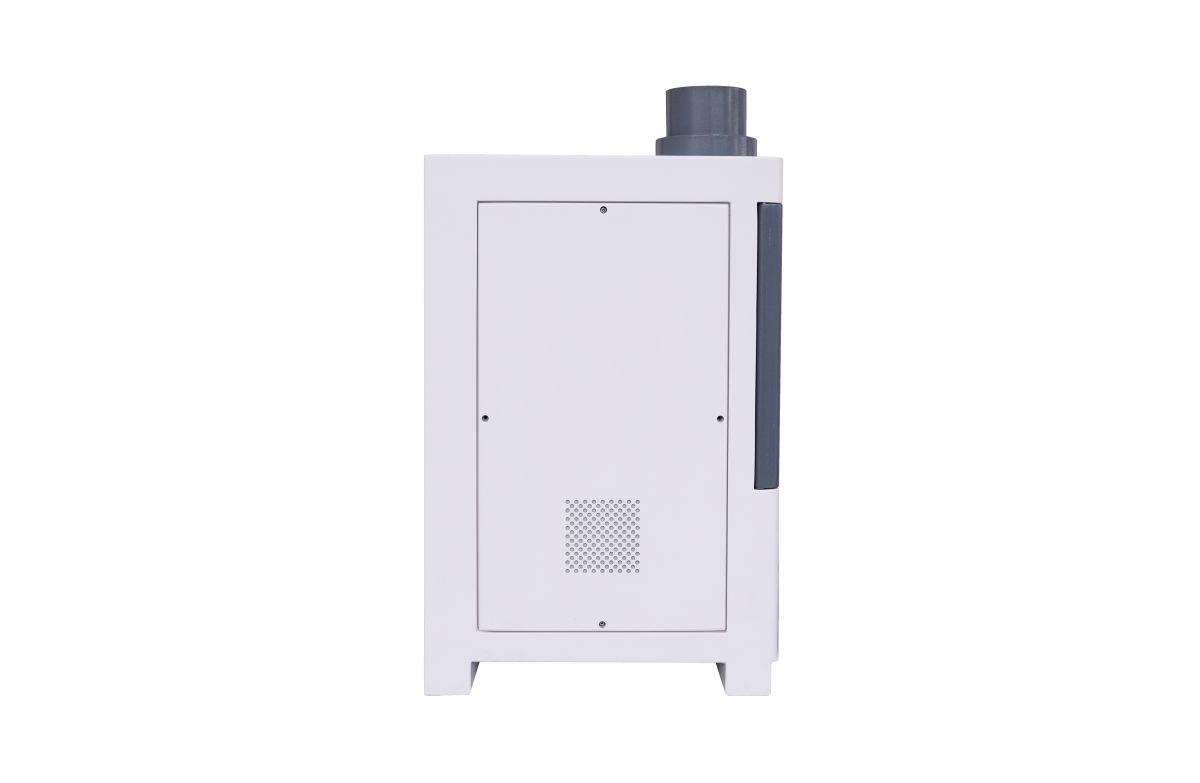

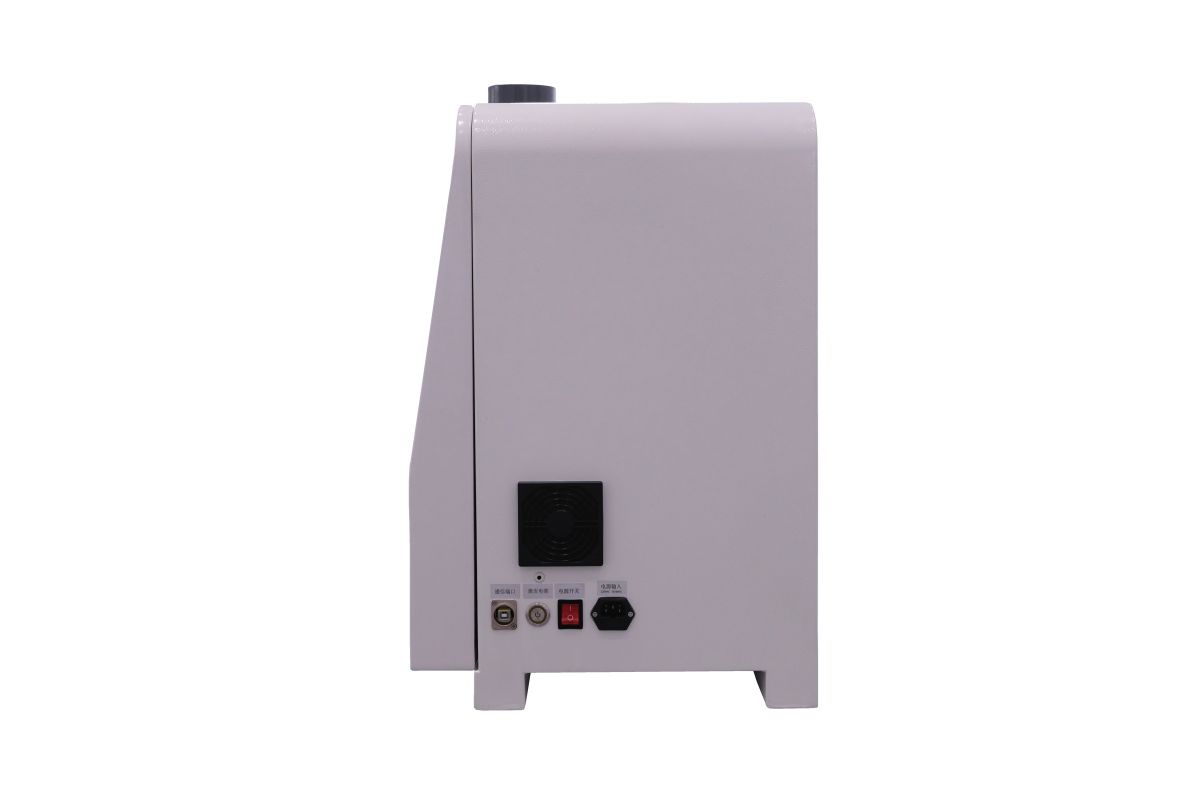

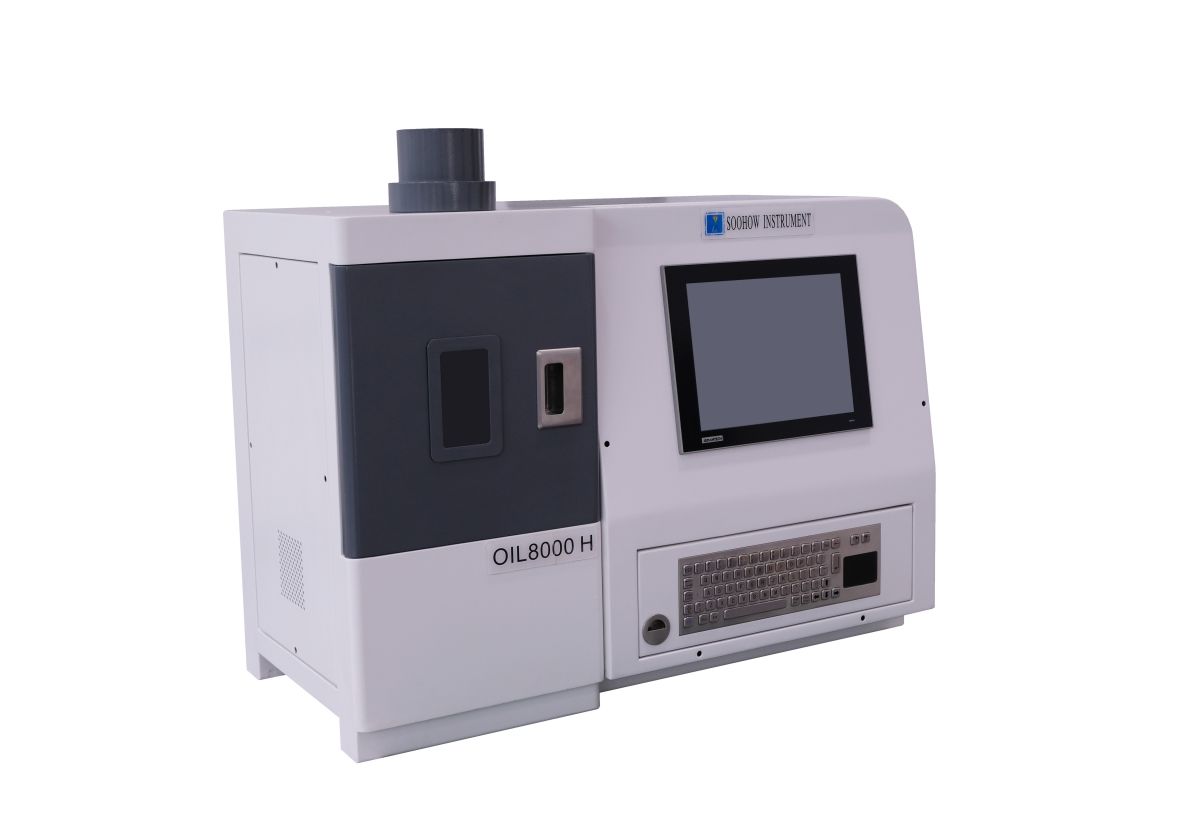

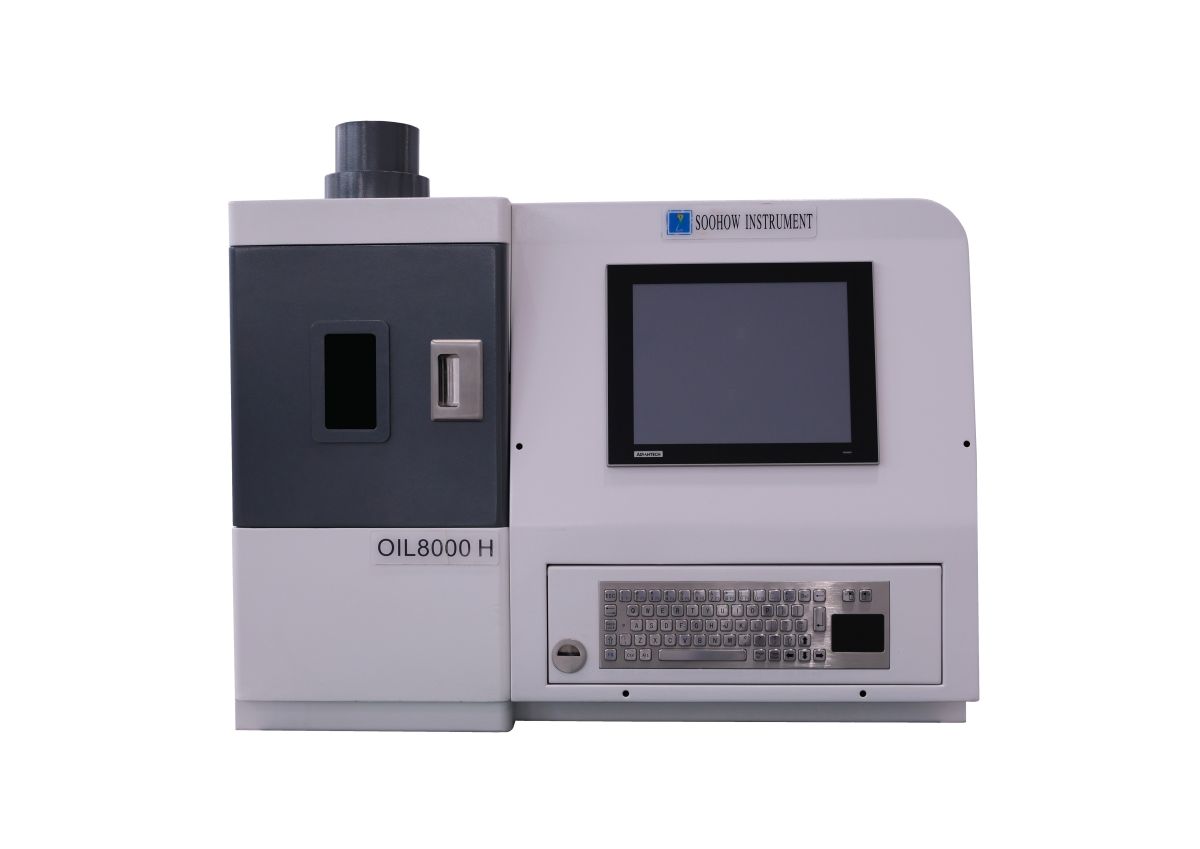

SOOHOW OIL8000H is a compact oil spectroscopic instrument launched by Soohow. It uses rotating disc electrode atomic emission spectroscopy technology and a new digital light source control system, making it smaller and more lightweight. Professional testing of metal abrasives and pollutants in lubricating oil or hydraulic oil in use, consistent with the requirements of ASTM D6595 standard. Simultaneously comply with ASTM D6728 standard (detection standard for alkaline pollutants in fuel). Oil element spectral analyzer, without the need for dilution of oil, without the need for auxiliary solvents or gases. Analyze multiple abrasive elements simultaneously within 30 seconds, allowing users to quickly detect the oil status of the equipment. The independently developed Soohow Oil Spectrometer Analysis Software [WinOil] V1.0 is intuitive and easy to operate, and can analyze multiple elements simultaneously. Application areas: Military, aviation, railway, ocean fleet, mines, refineries, power plants, oil plants, oil recovery, manufacturing plants, commercial laboratories, racing teams, and any other industry that uses lubricants.
Application field:
Military field
Aerospace field
Electricity industry
Transportation industry
Technical parameter
Optical system:
Multi block high-performance CCD detector system; Each CCD has 3648 pixels; Up to a resolution of 43776 pixels (12 x 3648 pixels);
Temperature stabilization system; Using special materials to cope with drift;
Focal length: 500 mm;
Spectral wavelength: 200-800 nm.
Digital arc power supply:
Adopting a new type of "digital arc light source" control, it has the advantages of small volume, light weight, and stable excitation;
Parallel acquisition of power signals based on FPGA and implementation of control;
The excitation condition software can be modified, making it more suitable for application engineers to find analytical conditions to apply to oil monitoring.

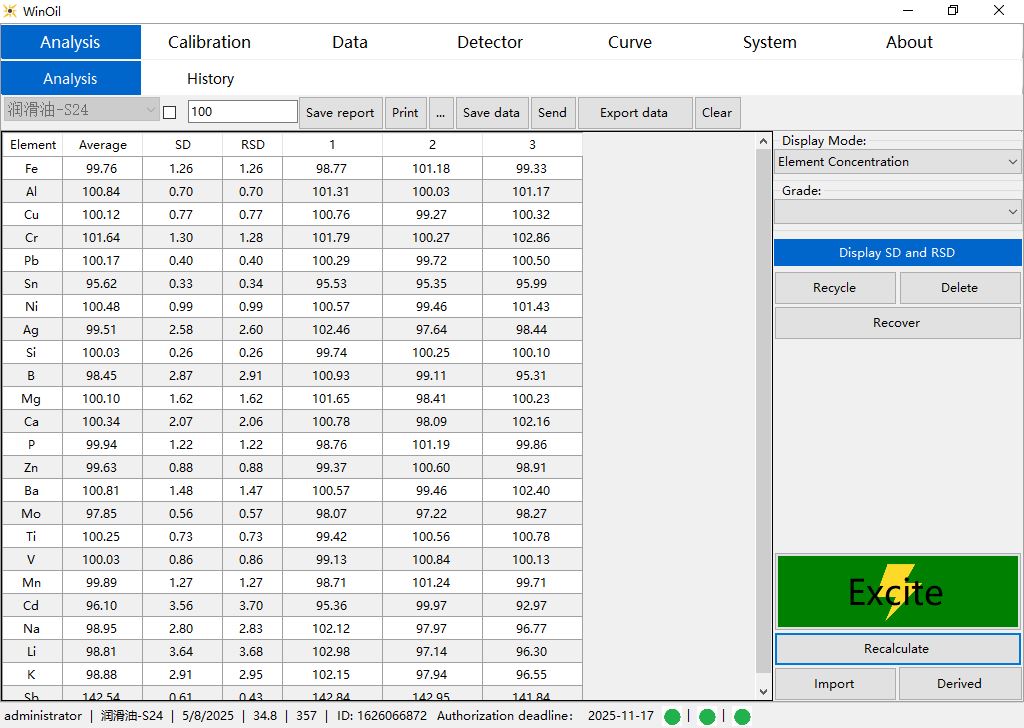

Analysis software:
Easy to operate user graphical interface;
Create or modify analysis programs;
Common operation function keys;
Optional output methods (intensity, intensity ratio, uncorrected concentration, corrected concentration, etc.);
Standard deviation and relative standard deviation functions;
Standard material library;
Element analysis results that exceed the working curve range can be marked;
Statistical software;
Statistical calculations;
Can print all excitation results or the average result of up to 100 excitations, along with their standard deviation and relative standard deviation.
Specifications:
Power supply: 220V+/-10%, single-phase, 50/60 Hz, 10 A, 1.5 KVA;
Dimensions: 860mm x 410mm x 620mm (length * width * height);
Weight: approximately 97 Kg.
Performance characteristics:
CCD detector full spectrum analysis technology facilitates the configuration of more matrices and elements, making it convenient for users to supplement configurations on site;
The ultra long focal length design ensures that the instrument has good resolution;
The spectral line processing algorithm can perform functions such as calibration, background subtraction, interference correction, etc;
High detection accuracy, detection limit less than 1ppm;
The sample testing speed is fast, and the single testing process is less than 30 seconds;
The instrument is easy to use and maintain, with low professional requirements for personnel;
The sample does not require pre-treatment or the use of additional chemical reagents, and the testing process is safe and environmentally friendly;
Working 24/7, with excellent stability and reliability.
