The oil spectrometer (also known as oil analysis spectrometer, atomic emission spectrometer, etc.) is based on the principle of atomic emission spectroscopy analysis and uses a graphite rotating disc electrode light source to analyze the elemental composition in oil.

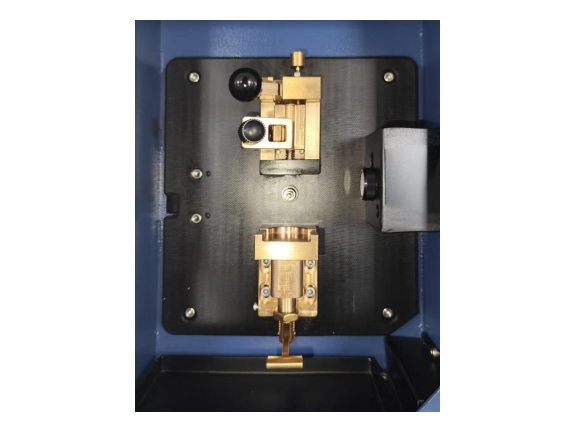

The oil spectrometer mainly consists of a high-energy arc excitation power supply system, a rotating disc electrode device system, a Paschen Runge structured spectrophotometer system, a high-precision CCD detection system, an electronic control system, and a computer analysis software system.
The oil spectrometer is suitable for elemental analysis of new oil and in use lubricating oil, hydraulic oil, light fuel oil (gasoline and diesel), heavy oil, lubricating grease, antifreeze, industrial domestic water, and turbine flushing water. Widely used in industries such as the military, aviation, ocean, land transportation, steel mills, mines, power plants, and oil testing commercial laboratories.
Application field:
Military field
Aerospace field
Electricity industry
Transportation industry
Performance indicators:
24 elements (Al, Ba, B, Ca, Cd, Cr, Cu, Pb, Mg, Mn, Mo, Ni, P, Si, Ag, Na, Sn, Ti, V, Zn, Fe, K, Li, Sb) can be analyzed synchronously, and the elemental composition of trace metal elements, pollutants and their additives in oil samples can be accurately determined;
Detection range: 0-1000ppm (19 elements, Al, B, Cd, Cr, Cu, Pb, Mn, Mo, Ni, Si, Ag, Na, Sn, Ti, V, Fe, K, Li, Sb), 0-6000ppm (5 elements, Ba, Ca, Mg, P, Zn);
Adopting high-performance CCD optical system;
Dual optical system, Roland circle optics and C-T optical path;
Dual fiber optic input optical signal;
No gas or other chemical reagents are required to assist in excitation, and the oil sample does not require pre-treatment. It can be directly placed in a sample cup for testing;
*Optical focal length: 400mm;
Spectral range: 200-800nm;
Optical system constant temperature control: 38 ° C ± 0.1 ° C, effectively ensuring accuracy and stability;
The sample testing speed is fast, and the single testing time is not more than 30 seconds;
High detection accuracy, detection limit less than 1ppm;
Sampling volume: about 2mL;
*Built in graphite electrode grinding machine;
*Built in printer;
*The device is equipped with an integrated built-in industrial control computer, which is convenient for special use at any time;

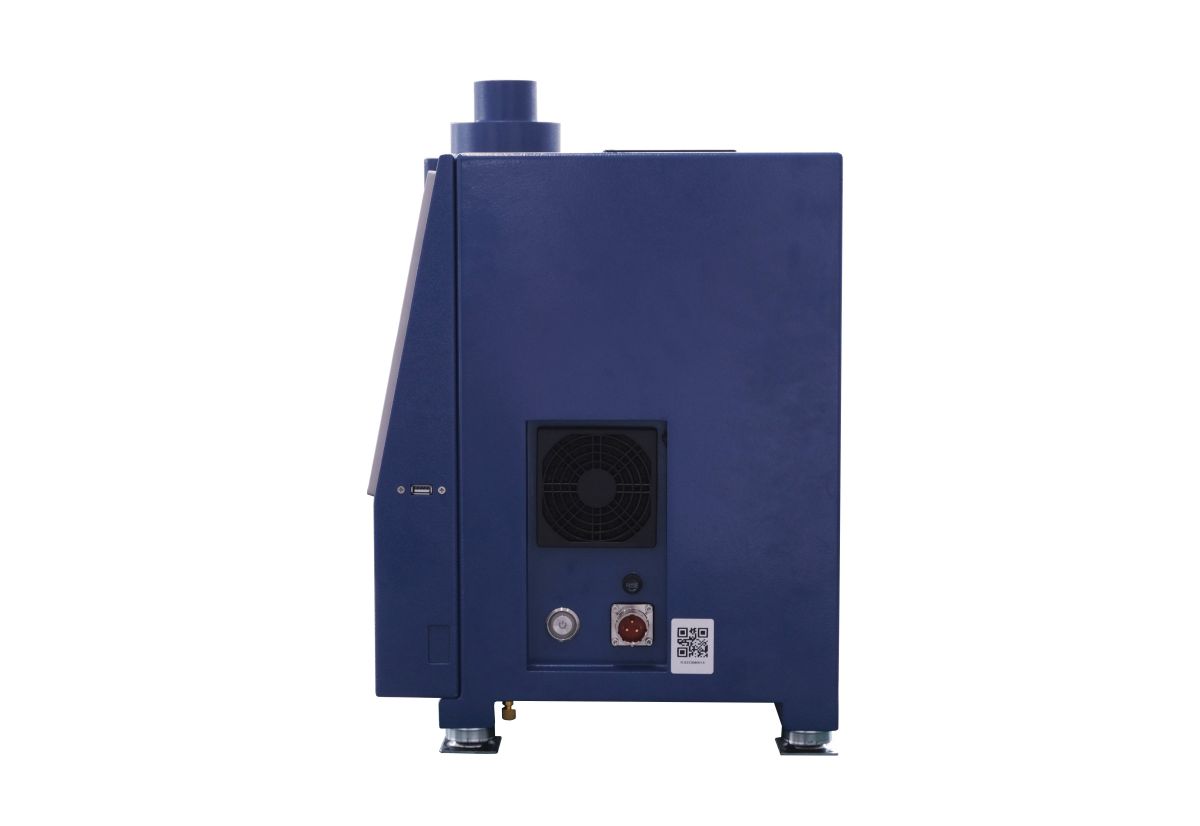

The equipment has an exhaust structure to prevent cross contamination;
*Size: 550mm * 330mm * 430mm (length * width * height);
*Weight: approximately 35kg;
*Equipped with a self-developed spectral analysis expert system, it has data management, trend analysis, and prediction functions, which can be used to analyze and judge the current working conditions of equipment/equipment, and make predictions for future working conditions, thereby providing effective basis for the correct use and maintenance of equipment.
Features and advantages:
Patent digital arc light source, solid-state source excitation, ensuring constant current source frequency output, without the need for periodic cleaning or cleaning of excitation source errors;
Adopting a high-resolution solid-state CCD sensor optical system, with a single pixel of 3648 bits and a pixel size of 8 * 200um, higher pixels can detect more effective spectral intensity;

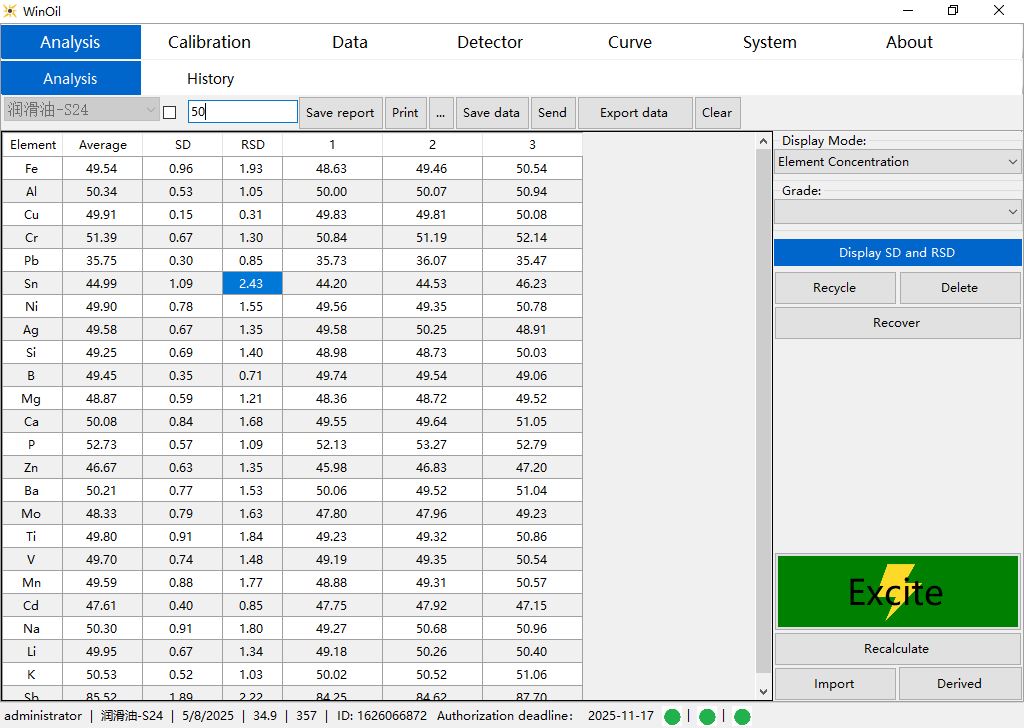

Spectral analysis application software based on Windows system, capable of running on Windows 7, Windows 10 and other systems, integrating instrument control, data management, qualitative and quantitative analysis functions;

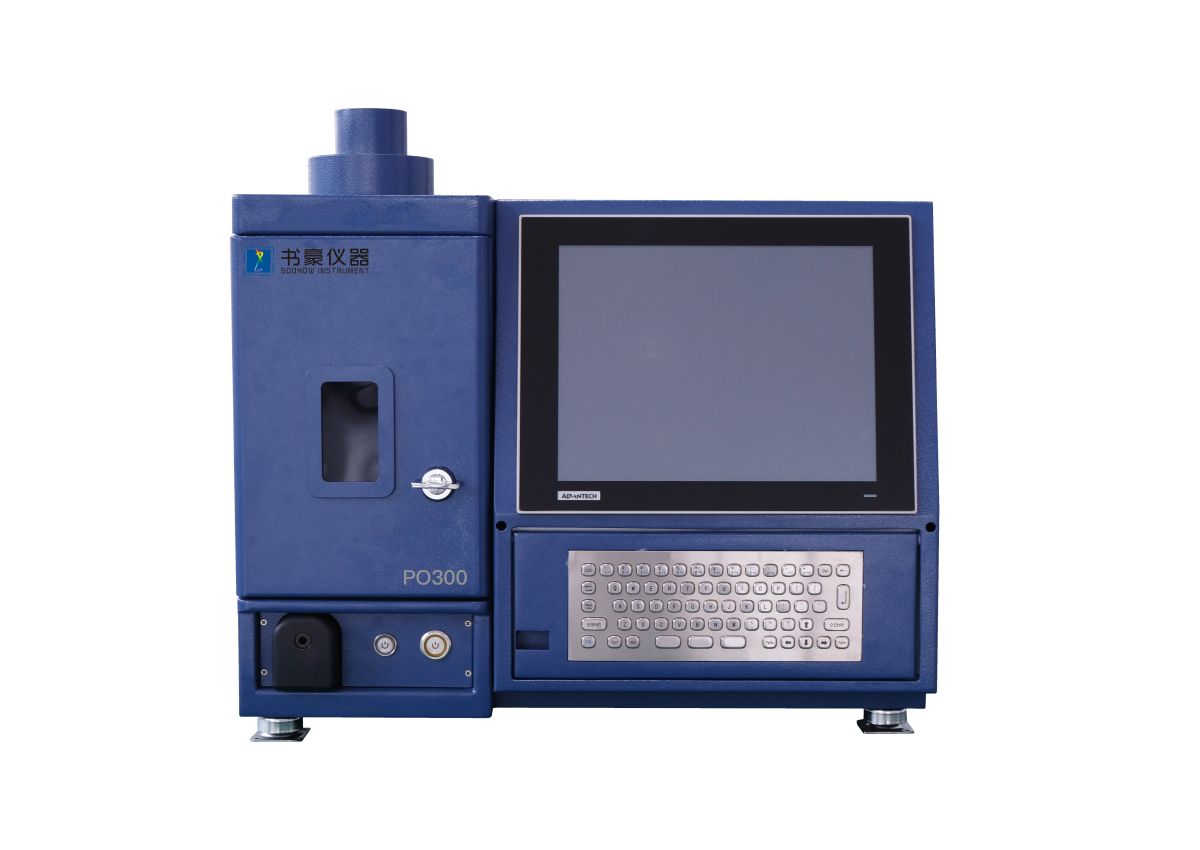

Single desktop instrument, computer system, and motor grinder are built-in to the instrument. The instrument has a small overall volume, is easy to transport, has a short heating time, high reliability, and is suitable for naval environments;
Without the need for air, oxygen, and other chemical solvents, the oil sample does not require pre-treatment and can be directly placed in a sample cup to test the built-in printer; Built in electrode grinder, easy to operate.
